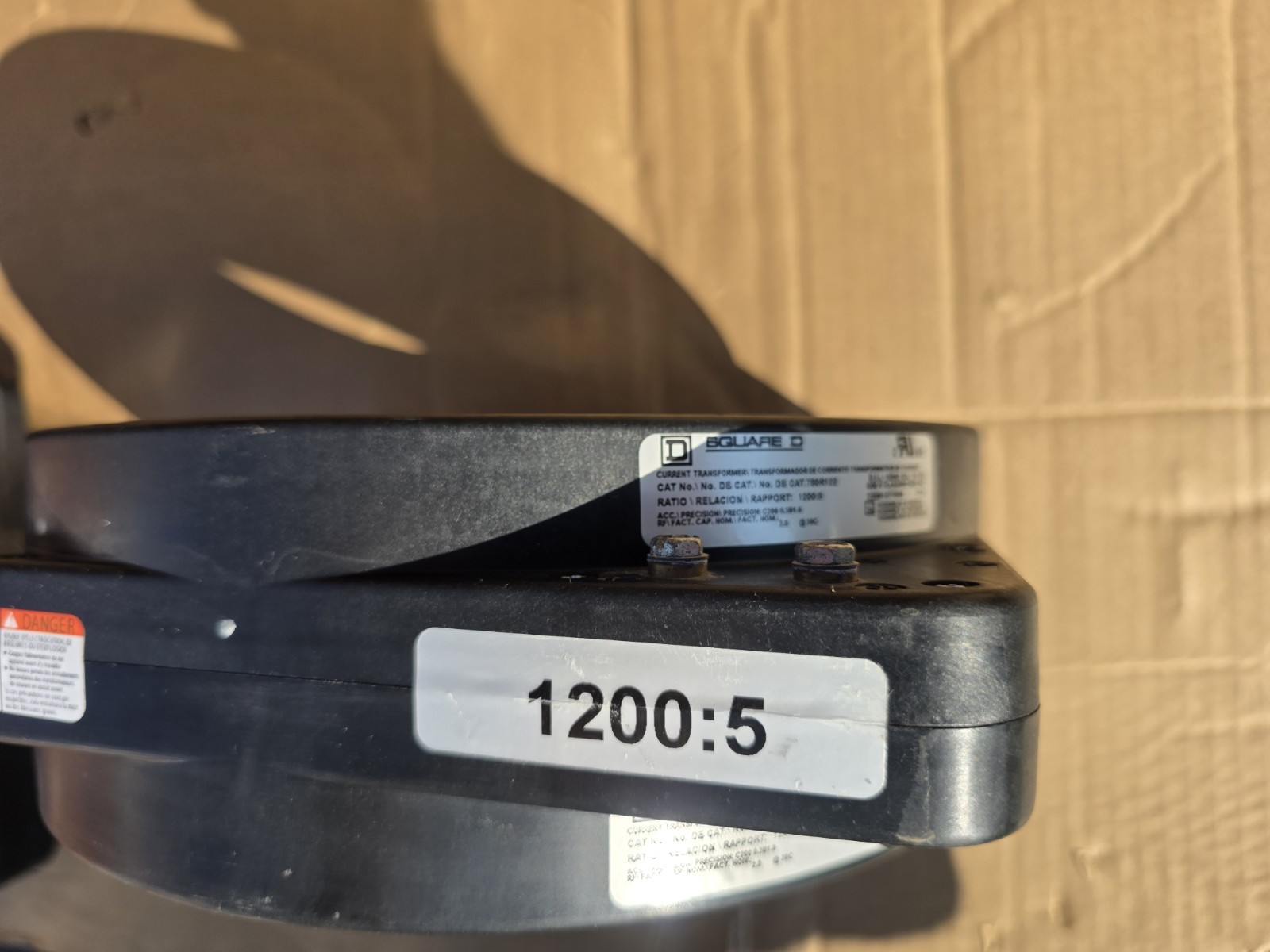

1200:5 CT Square D 27S0R122 27S Bus Bar-Type Current Transformer 1200:5 50-400Hz
USD 225.00 USD
Specifications
| Power Rating | 50 VA |
| Minimum Operating Frequency | 50 Hz |
| Plug Type | Hardwired |
| Primary Current Rating | 1200 A |
| MPN | 27S0R122 |
| Item Length | 13 in |
| Turns Ratio | 1200:5 |
| Item Height | 8 in |
| Secondary Voltage Rating (DC) | 10 kV |
| Secondary Voltage Rating (AC) | 0.6 kV |
| Secondary Impedance | 1 Ω |
| Item Width | 3 in |
| Mounting Style | Panel Mount |
| Current Conversion | AC to AC |
| Termination Style | Screw |
| Color | Black |
| Conversion Function | Step-down |
| Brand | Square D |
| Primary Voltage Rating (AC) | 600 V |
| Series | 27S |
| IP Rating | IP00 |
| Primary Voltage Rating (DC) | 10 kV |
| Primary Impedance | 1 Ω |
| Maximum Operating Frequency | 400 Hz |
| Outlet Type | Hardwired |
| Secondary Current Rating | 5 A |
Item # 34 New Pull outs from project before it was installed. No factory box. There's 13 of them. prefer to sell all in 1 shipment but not necessary. Price is per each. 1200:5 CT Square D 27S0R122 27S Bus Bar-Type Current Transformer 1200:5 50-400Hz weigh approximately 35-40# shipping weight
