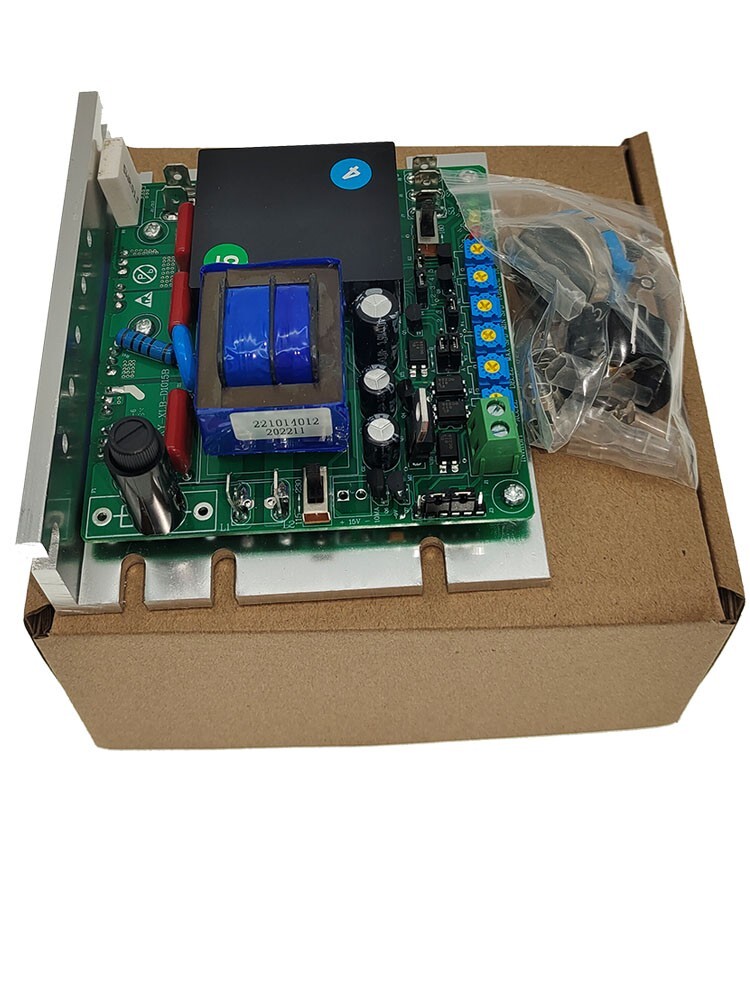

1HP input 115/230 VAC output 90/180 VDC SCR Chassis DC Motor Speed Controller
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| Brand | Lulanjiu |
| Maximum Load | 1 HP |
| Unit Type | Unit |
| Model | 115/230DR10AL-02 |
| Input Voltage | 115V 230V |
| Country/Region Of Manufacture | China |
1HP dc speed controller input 115/230 VAC output 90/180 VDC SCR Chassis DC Motor Speed Controller 180v dc controllerProduct characteristics:■SMT technology, small size ■Good following features, rapid respond speed ■Wide speed ratio, strong mechanical features ■Applicable to permanent magnet , DC torque motor ■Double closed-loop PI regulation (Voltage, current) ■Current setting and current-limiting protection (continuous operation setting current) ■Large low speed output moment ■Over-current protection function ■Quick stop function ■Arbitrary setting of upper and lower speed ■Soft start, soft stop setting function ■Selection of speed mode, torque mode ■Normally open, close selection of enable signal ■Selection of input, output voltage switch ■Driver speed governing controlled by standard signal input 0-5V or 10K potentiometerSpecificationInput voltage AC:115V/230V±10% (other voltages can be customized as customer’s requirements)Frequency:50/60HZ±5%Output voltage DC: 0~90V 0-110V 0-160V 0-180V 0-220V (can be set)Rated output current:10ARevolving speed ratio:≤0.1%Environment temperature: -10℃～+60℃Insulation voltage resistance:1500V ACInsulation resistance:>500MΩEnvironment humidity:relative humidity ≤65% (no moisture condensation)
