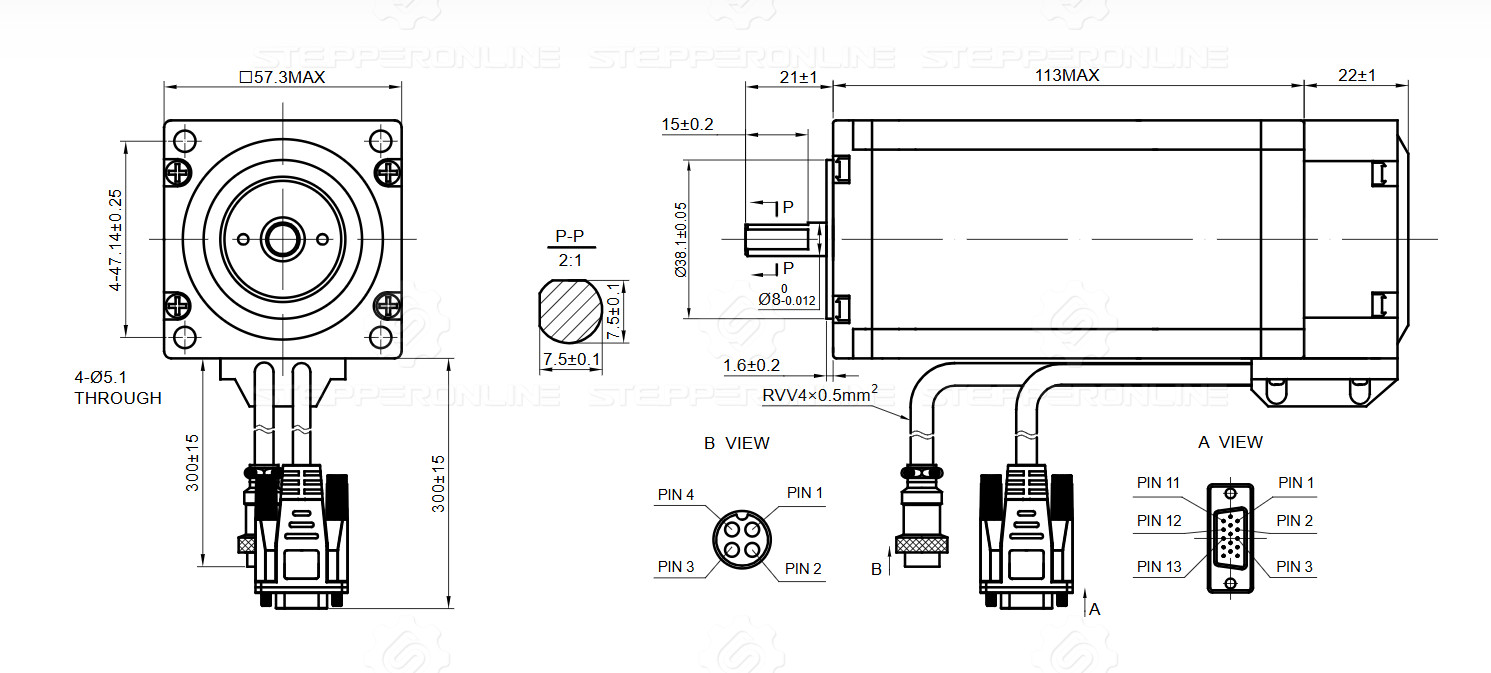

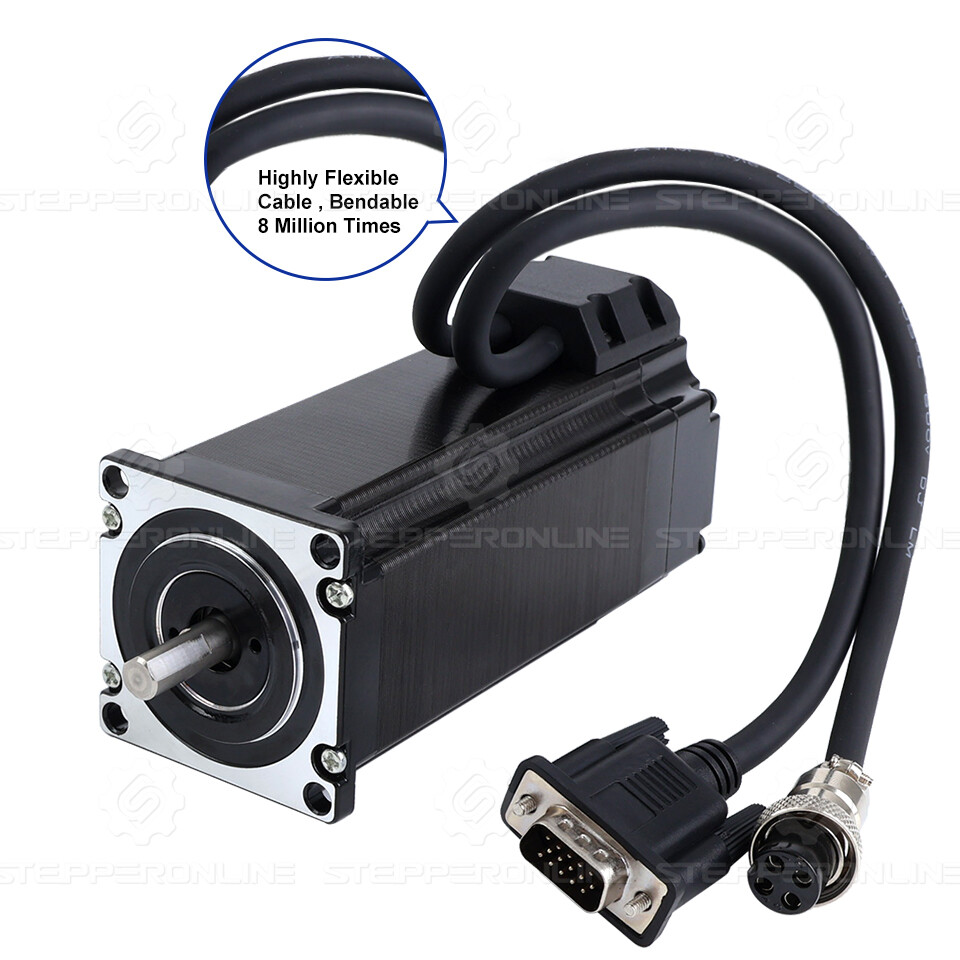

3Nm 424.83oz.in Φ8mm 4.2ANema23 Closed Loop Stepper Motor &Driver w/Power Supply
USD 57.73 USD
Specifications
| Package | Only Motor |
| Brand | StepperOnline |
| Nominal Rated Input Voltage | 24-48VDC |
| Full Step Angle | 1.8° (200 Steps) |
| IP Rating | IP40 |
| Shaft Diameter | Φ8mm |
| MPN | 1-CLYS |
| Holding Torque | 3.00Nm(424.83oz.in) |
| Rated Current Per Phase | 4.2A |
| Resistance Per Phase | 0.82ohms |
| Country/Region Of Manufacture | China |
| D-cut Shaft Length | 15mm |
| Encoder Type | Optical Incremental |
| Encoder Resolution | 1000PPR(4000CPR) |
| Isolation Resistance | 500MΩ |
| Pulse Width | 2.5μS |
1 x Closed Loop Stepper Driver 0-7.0A 24-50VDC for Nema 17, 23, 24 Stepper Motor. 1 x Nema 23 Closed Loop Stepper Motor 3.00Nm(424.83oz.in) Encoder 1000PPR(4000CPR). Output Circuit Type: Differential type.
Related Items
12×15 CLEAR POLY PLASTIC LAY-FLAT BAGS PACKING SHIPPING OPEN TOP 1MIL FDA LDPE
4Pcs Dental High Speed Turbine Low Speed Handpiece Kit 4H Motor Contra Angle YAD
NSK Style Dental Straight Nose /Air Motor Low Slow Speed Handpiece 4 Hole
Dental Low Speed Handpiece Air Motor 4-Hole fit NSK Inner/Exter water spray CE

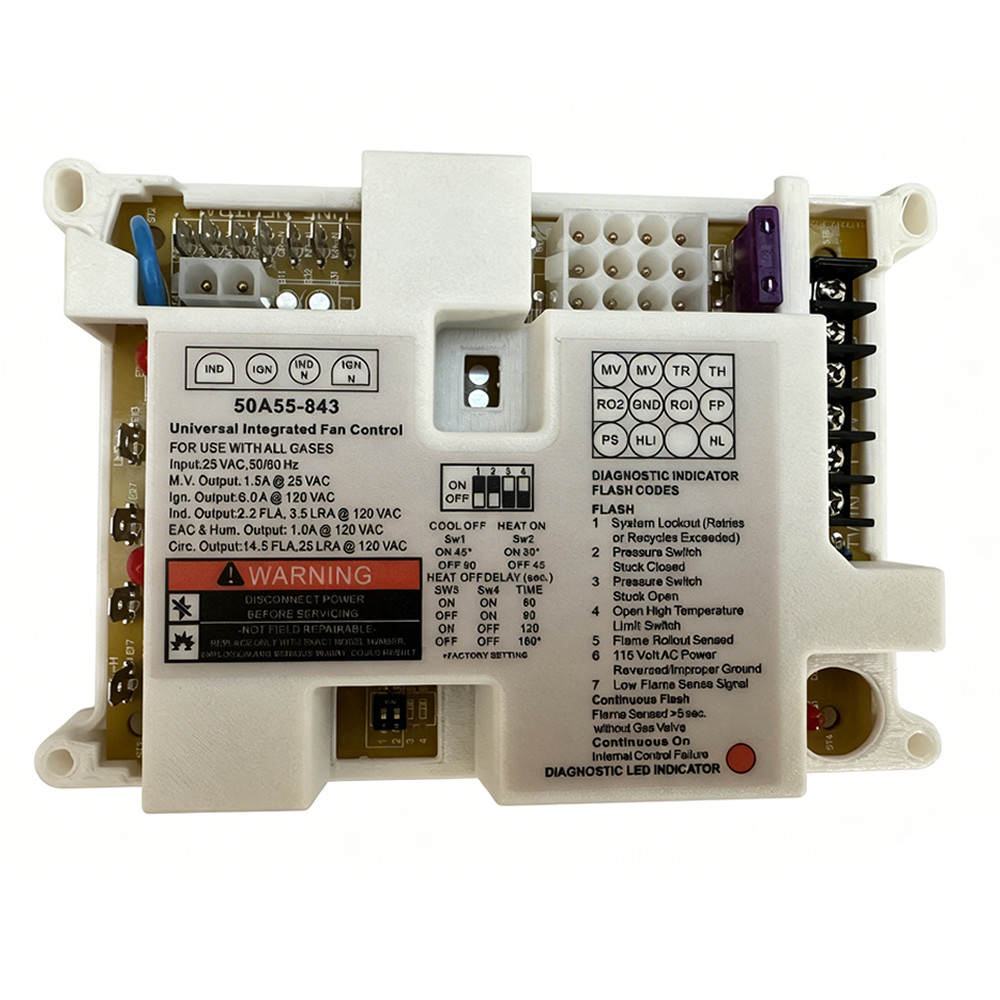

50A55-843 Integrated Furnace Control Board For White Rodgers 50A50 50A55 Series
