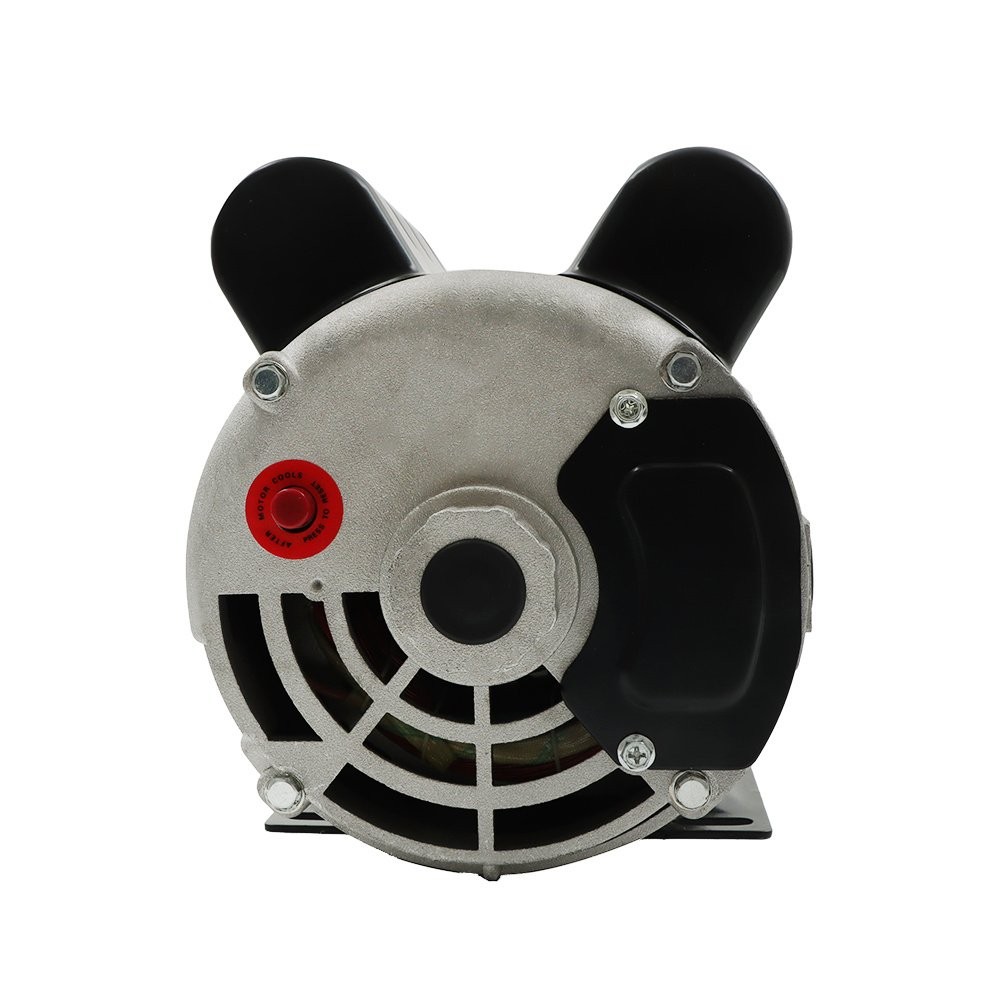

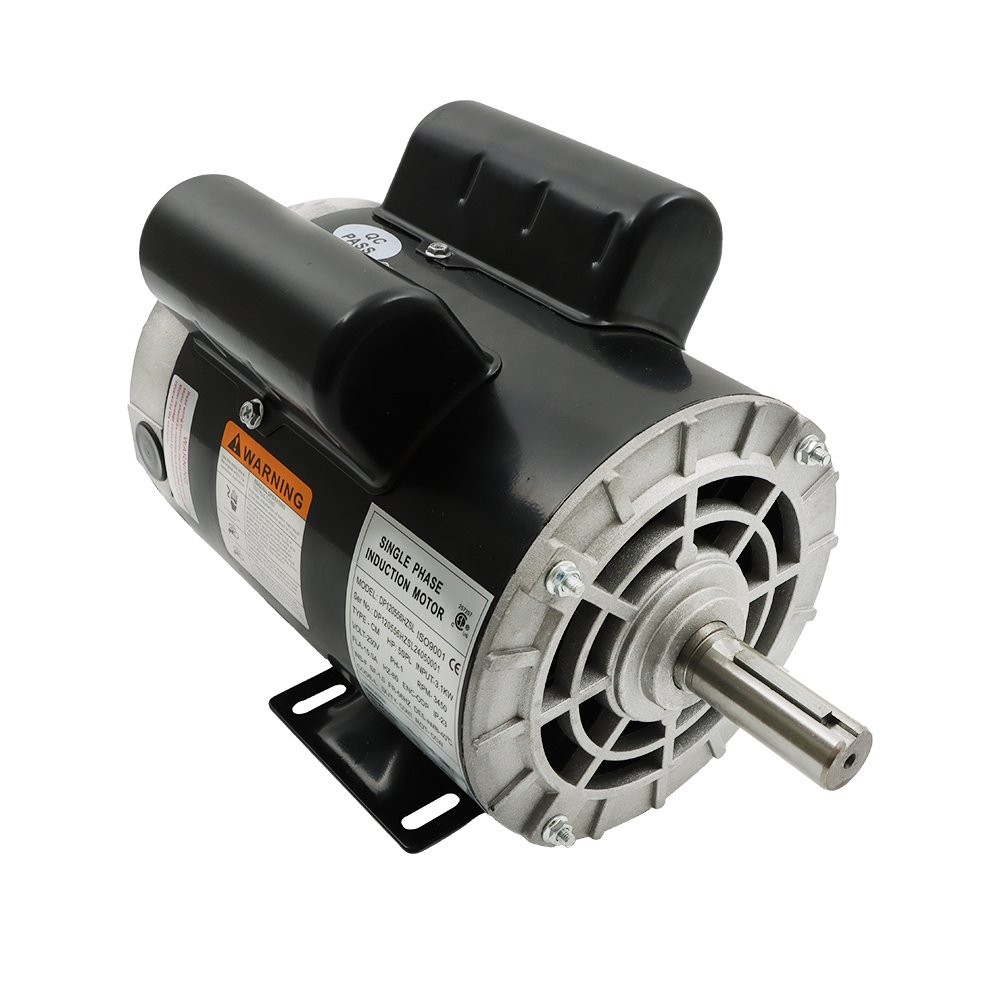

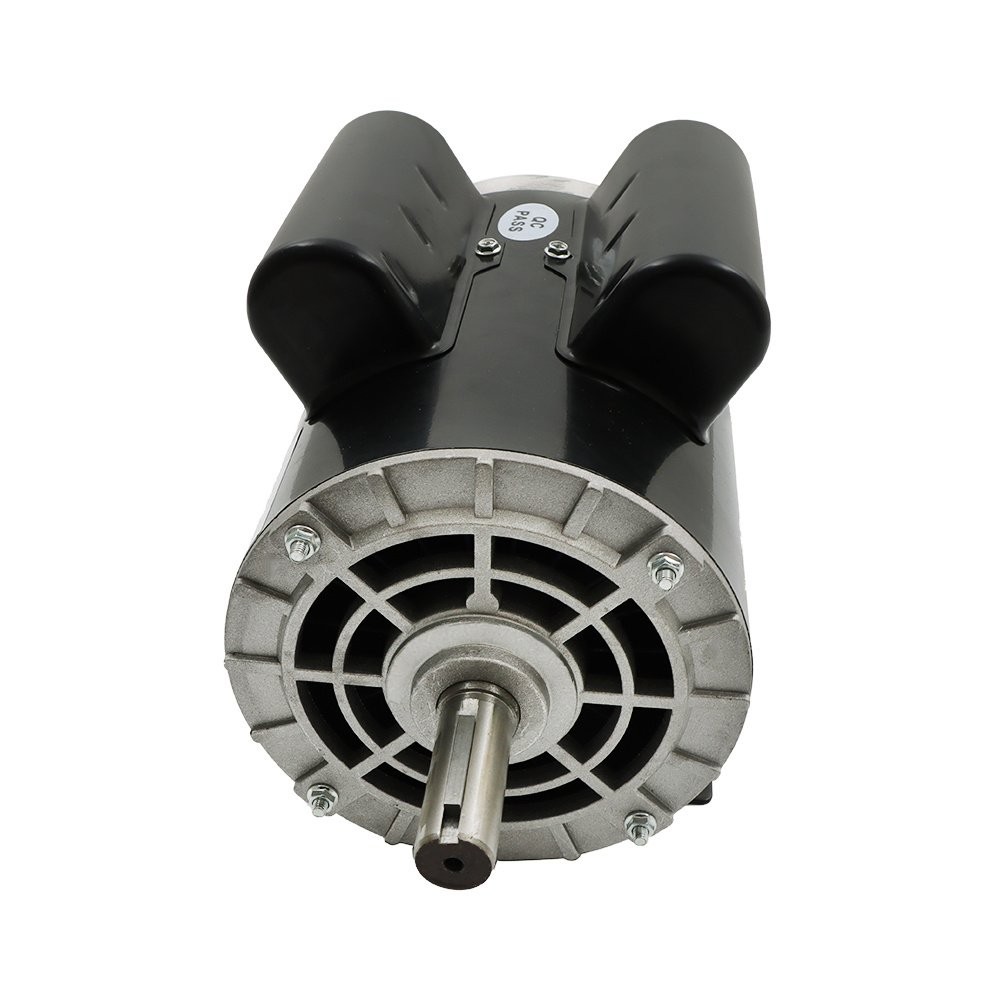

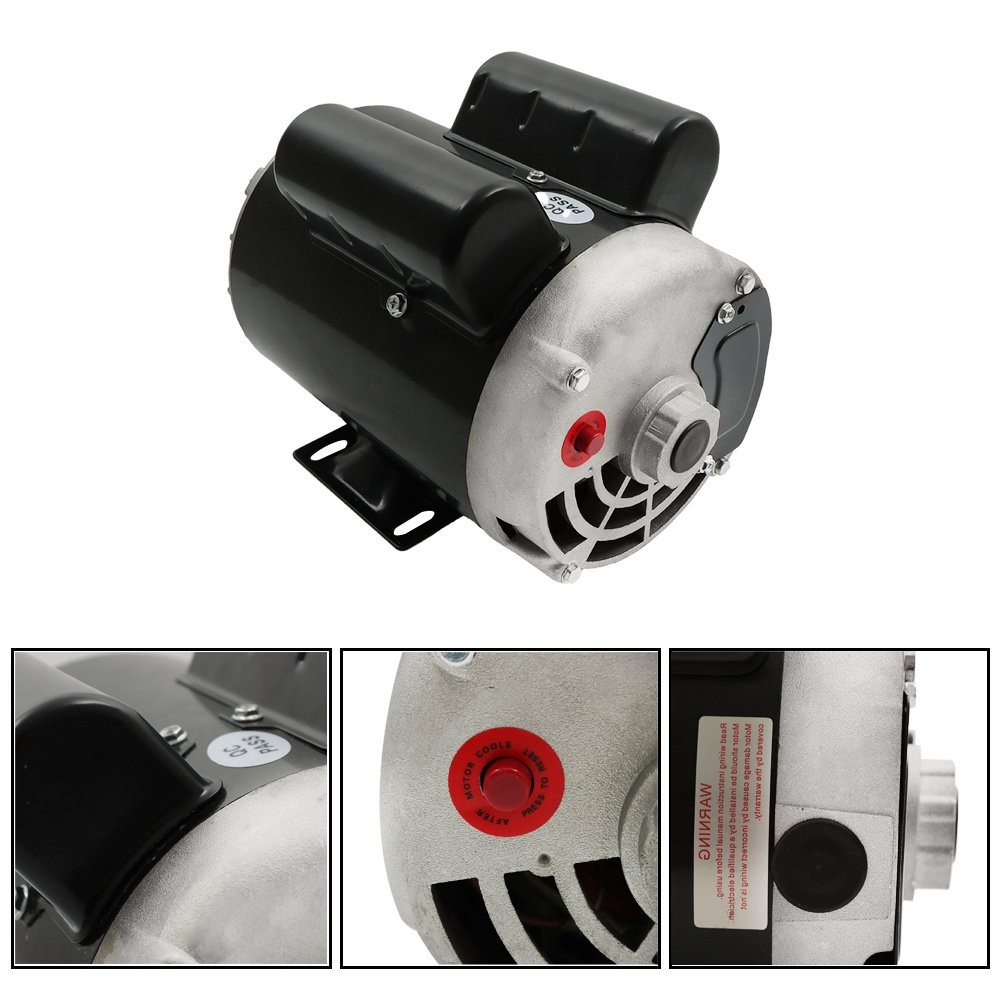

5 HP SPL 1 Phase 3450RPM Electric Air Compressor Duty Motor 56HZ 7/8″ Shaft
USD 163.38 USD
Specifications
| Country Of Origin | United States |
| Brand | findmall |
| MPN | IN4048434AL |
| Type | Air Compressor Motor |
| Nominal Rated Input Voltage | 230 Volts (AC) |
| Rotation | CCW |
| Horsepower (HP) | 5 HP SPL |
| Shaft Diameter | 7/8 in |
| Shaft Length | 2.25in |
| AC Phase | Single Phase |
| Amps | 15A |
| NEMA Frame Size | 56HZ |
| Rated RPM | 3450 RPM |
| IP Rating | IP23 |
| Meterial | Rolled steel shell |
| Enclosure Type | ODP |
| Motor Size | 12.28*6.5*7.95 |
| Synchronous Speed | 3600 |
| AC Frequency Rating | 60 Hz |
| Insulation Class | F (Max 311°F) |
| Warranty | 1 Year |
Feature： Nominal Rated Input Voltage:230 Volts (AC) Horsepower (HP):5 HP SPL Shaft Diameter:7/8 in Shaft Length:2.25in AC Phase:Single Phase Amps:15A POLE:2 NEMA Frame Size:56HZ Rated RPM:3450 RPM Rotation:CCW IP Rating:IP23 AC Frequency Rating:60 Hz Meterial:Rolled steel shell Enclosure Type:ODP Insulation Class:F (Max 311°F) Motor Size:12.28*6.5*7.95 Description： .
Related Items
20x24x2 MERV 11 Pleated AC Air Filters. 4 Pack
Original VINTAGE 1970s Heat Transfer | Colorful Kites and Clouds Retro Graphic
ALUMINUM SQUARE/ BLOCK / BAR, ( 9 1/4″ x 3″ x 2″ ) 5.5 Pounds
50 LP Heavy Duty Premium Record Album Mailers Book Box Variable Depth Mailers

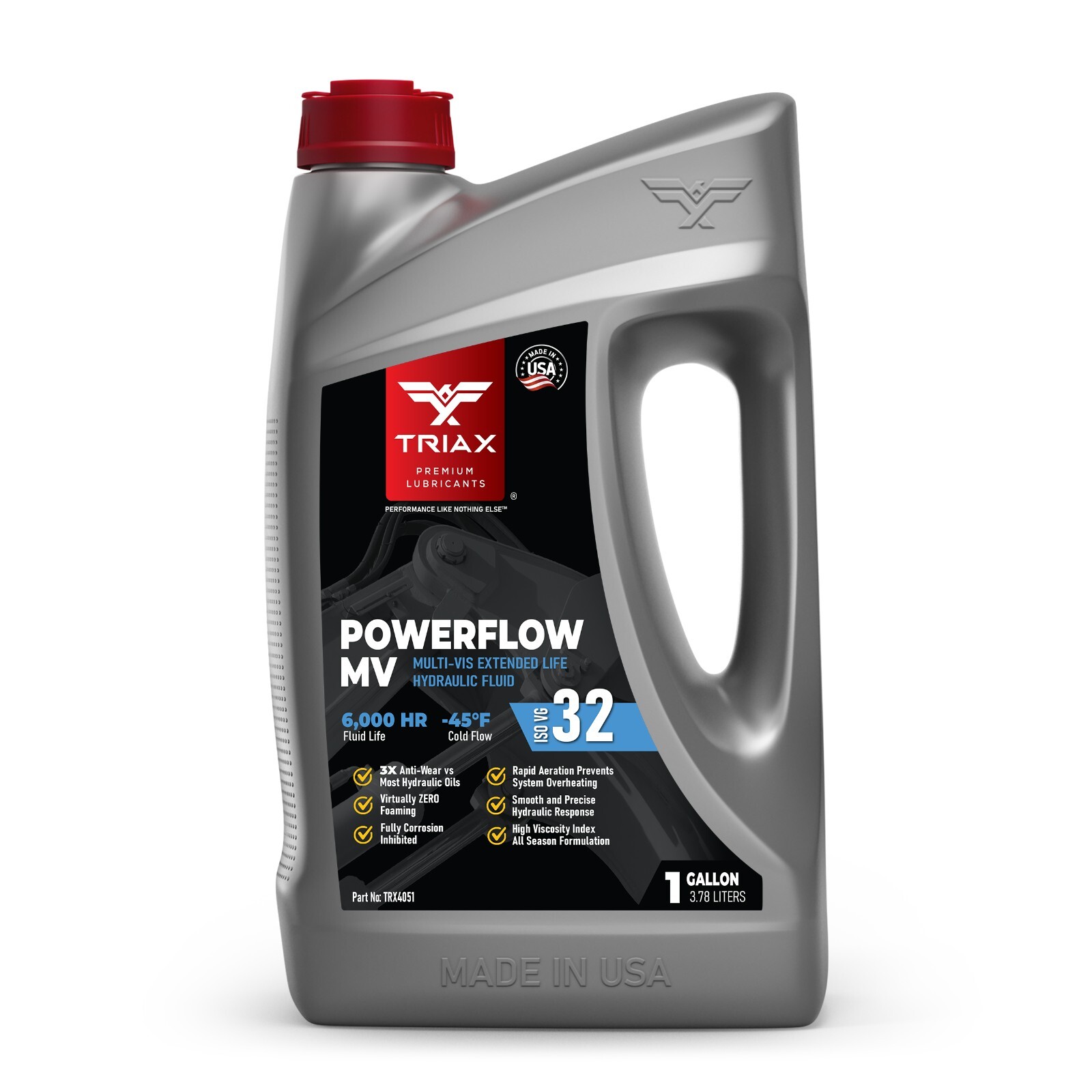

TRIAX Powerflow MV 32 – Multi-Viscosity Hydraulic Oil (1 Gallon)
