Electric Motor 3 HP 3450 RPM SPL Compressor Duty 56HZ Frame 1 Phase 115/230V New
USD 96.26 USD
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| UPC | 871248271367 |
| Brand | ALL-CARB |
| MPN | AZY8L002151525834517 |
| NEMA Frame Suffix | 56 Frame |
| Type | SPL |
| Synchronous Speed | 3600 RPM |
| Enclosure Type | ODP (Open Drip-Proof) |
| Shaft Type | Keyed |
| Shaft Diameter | 5/8 in |
| Nominal Rated Input Voltage | 115/230 V |
| AC Phase | Single Phase |
| Mounting Type | Rigid |
| IP Rating | IP23 |
| Input | 2.2 KW |
| Shaft Length | 1.88 inch |
| Efficiency | 75 % |
| Gross Weight | 19.12 kg / 42.15 lbs |
| Actual Rated Input Voltage | 115/230V |
| Rated Load (HP) | 3HP SPL |
| AC Frequency Rating | 60 Hz |
| Base RPM | 3450 |
| AC Motor Type | Induction/Asynchronous |
| Reversible/Non-Reversible | Non-Reversible |
| Service Factor | 1.00 |
| Model | DP120356SL |
Payment We accept Paypal only. Shipping Please contact us if you have special requirements (combination of packaging etc.). Returns Change-of-mind return can only be accepted within 8 days after purchase. All other returns can be accepted in 30days. We will closely examine the condition of the returned items and will not issue any refund/exchange before we make sure the items are in their original neat conditions. Contact Us We do our best to resolve any issue. Leaving negative feedbacks and low ratings doesnt get things solved. So please talk with us and we will not let you down. All rights reserved.
Related Items
WELDON 60 DB 6 PC 60 DEG ZERO FLUTE COUNTERSINK & DEBURRING SET – USA
Elkay Plastics LDPE Poly Bags 2mil 4×6 – 100 bags per pack 20F-0406
5 Rolls 5000 1 x 3 FRAGILE HANDLE WITH CARE Stickers Labels

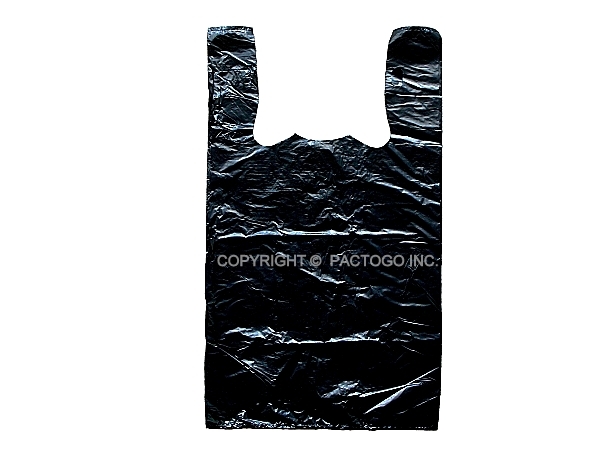

Large Black 1/6 T-Shirt Plastic Shopping Grocery Bags 11.5″ x 6.5″x 21″ 1000/CS
