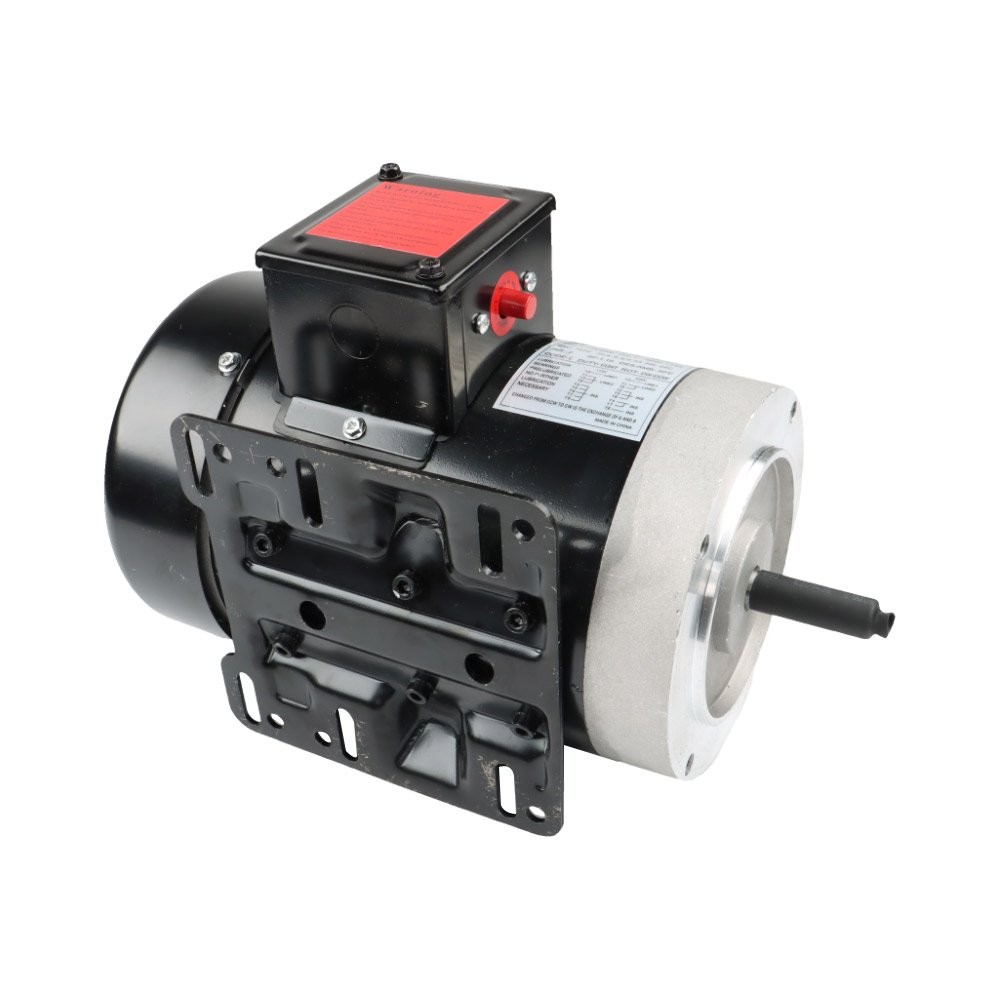

General Purpose Motor 56C 1725RPM Single Phase TEFC 60HZ Electric Motor1/2HP USA
USD 138.58 USD
Specifications
| Country Of Origin | United States |
| Brand | ALL-CARB |
| MPN | 161310-bes |
| AC Phase | Single Phase |
| Housing Material | Steel shell |
| Protector | Yes |
| AC Motor Type | Induction/Asynchronous |
| Mounting Type | Based-mounted |
| IP Rating | IP55 |
| Model | General Electric Motor |
| Gross Weight | 30.97 lb |
| Rated Load (HP) | 1/2 |
| Nominal Rated Input Voltage | 115 V, 230 V |
| Special Motor Construction | Spindle Motor |

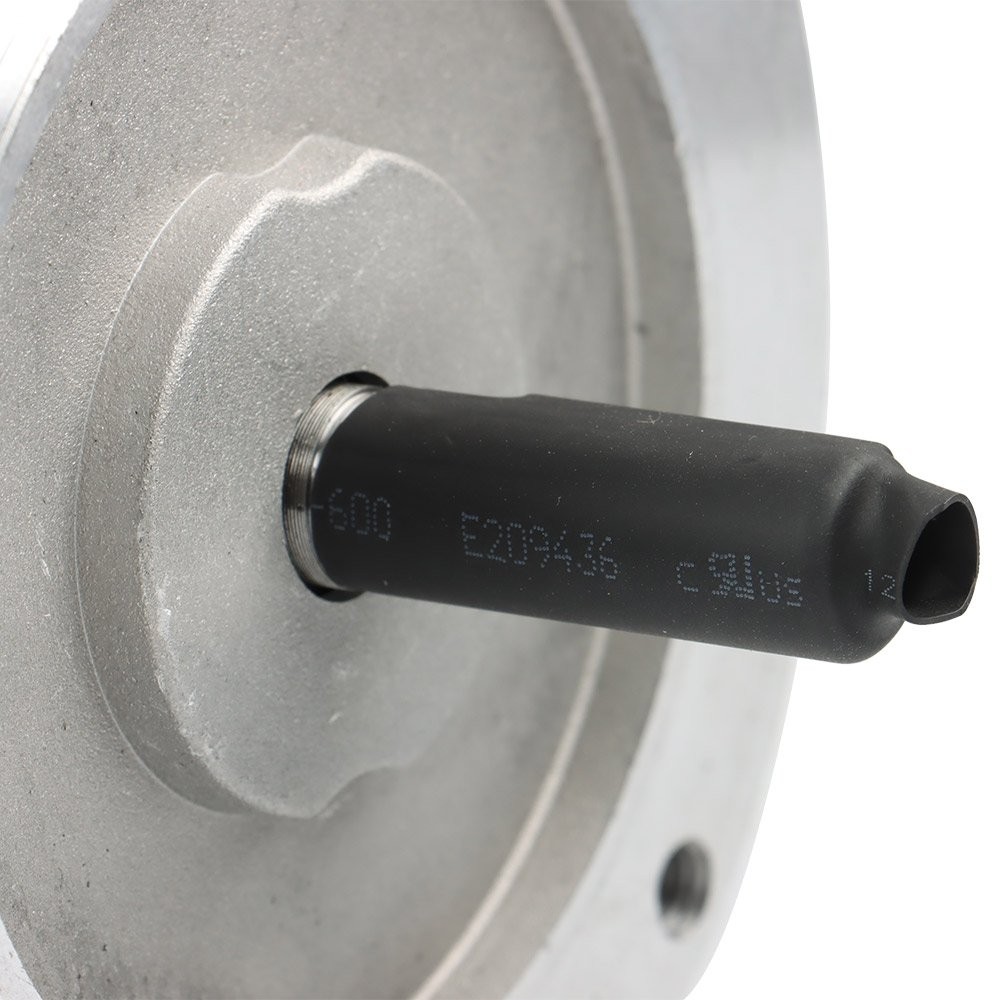

| Shaft Diameter | 5/8 in |
| Shaft Length | 1.88 in |
| AC Frequency Rating | 60 Hz |
| Rated Speed | 1725 RPM |
| Reversible/Non-Reversible | Reversible |
| Amps | 8.8 A/4.4 A |
| Insulation Class | F (Max 311掳F) |
| Synchronous Speed | 1800 |
| Package Size | 14.96*10.62*10.62 in |
Specification .
