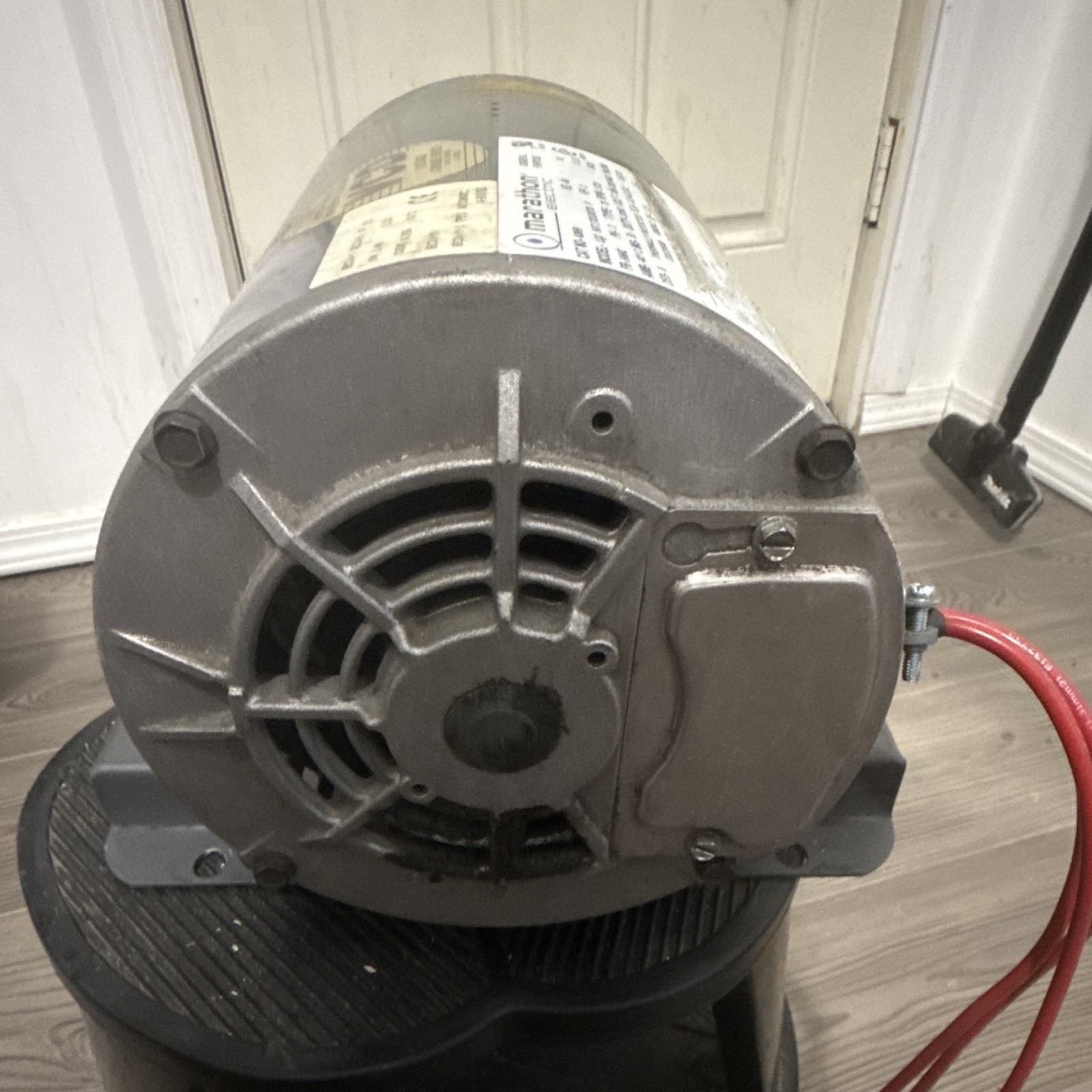

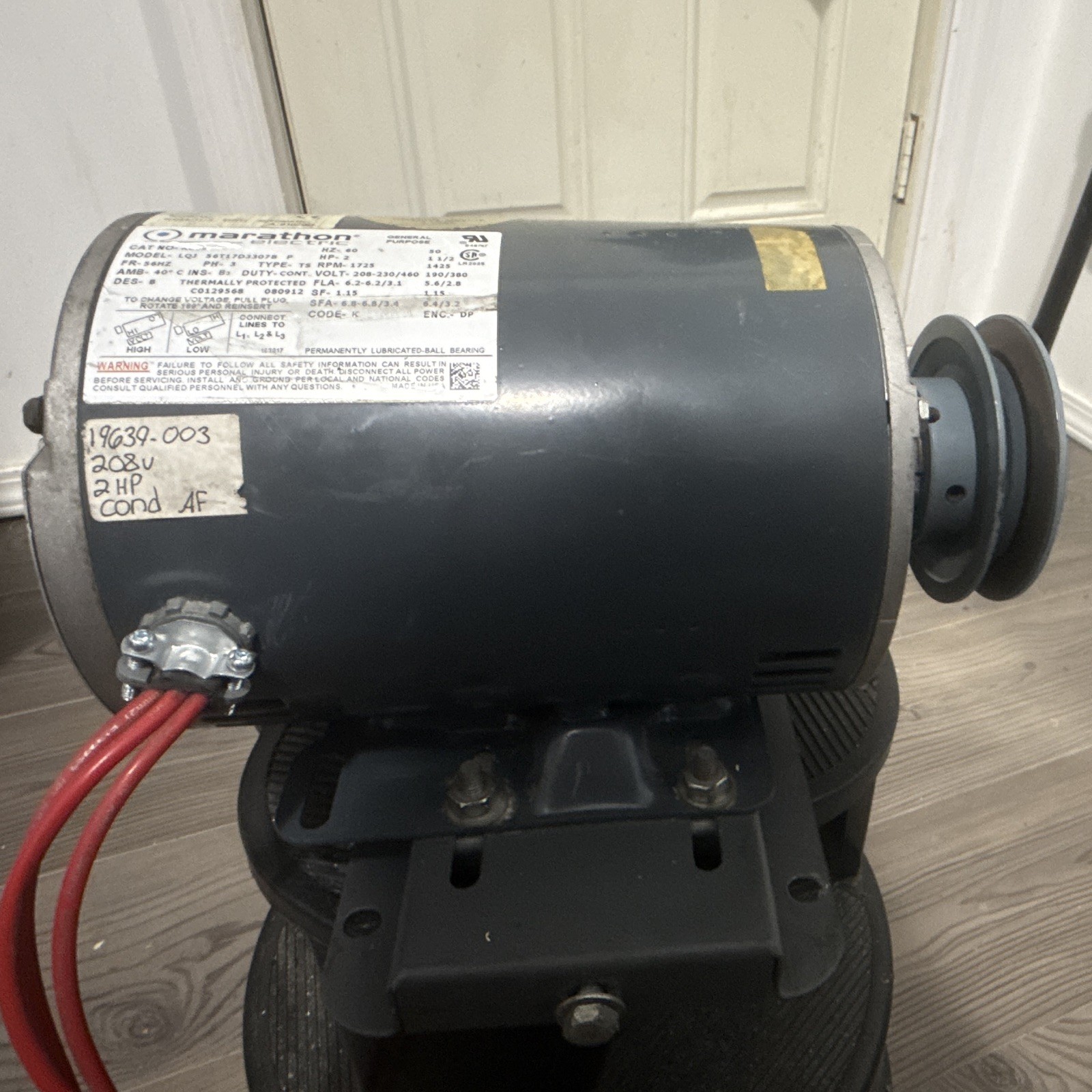

Marathon Electric K069 1.5HP 1725RPM 208-230/460V 3PH DP Foot-Mount

Marathon Electric K069 1.5HP 1725RPM 208-230/460V 3PH DP Foot-Mount

USD 150.00 USD

SKU: HLvQAg6E

Brand: Marathon Electric

MPN: K689

Condition: Used

Tags: 1 1/8 in 1-1/2" 1.15 1725 208 V, 230 V, 460 V 208-230/460 4.6/13.2 56HZ 6.2-6.2/3.1 6.4/13.2 60 Hz 689 Foot-Mounted General Purpose Motor Induction/Asynchronous K689 Keyed Marathon Electric Not Rated Permanent Magnet Reversible SFT27D5307B Three Phase

Categories: Metalworking Equipment

Specifications

Actual Rated Input Voltage	208-230/460
Special Motor Construction	General Purpose Motor
Base RPM	1725
MPN	K689
Service Factor	1.15
Starting/Locked Rotor Torque	6.4/13.2
Rated/Full-Load Torque	4.6/13.2
Full Load Amps	6.2-6.2/3.1
Rated Load (HP)	1 1/2
IEC Frame Size	56HZ
AC Frequency Rating	60 Hz
Shaft Type	Keyed
AC Motor Type	Induction/Asynchronous
Shaft Diameter	1 1/8 in
Mounting Type	Foot-Mounted
DC Stator/Winding Type	Permanent Magnet
Reversible/Non-Reversible	Reversible
Brand	Marathon Electric
Protection Against Liquids	Not Rated
IP Rating	Not Rated
Nominal Rated Input Voltage	208 V, 230 V, 460 V
Model	SFT27D5307B
AC Phase	Three Phase
Protection Against Solids	Not Rated
