Split Surface Roughness Gauge Tester Radius of Probe Pin 5µm 4mN(0.4gf)
USD 1305.48 USD
Specifications
| Probe Angle | 90º |
| Parameters | Ra,Rq,Rz,Rt |
| Vertical Radius Of Guiding Head | 48 mm |
| MPN | 200009041407 |
| Brand | VTSYIQI |
| Profile Digital Filter | RC,PC-RC,GAUSS,D-P |
| Maximum Driving Stroke | 17.5mm/0.7inch |
| Accuracy | ±10% |
| Radius Of Probe Pin | 5µm |
| Material Of Probe Pin | Diamond |
| Measurement Force Of Probe | 4mN(1.6gf) |
| Cutoff Length(l) | 0.25mm,0.8mm,2.5mm |
| Resolution | 0.001/0.01/0.1 |
| UPC | 635405313853 |
The sensor gets the surface roughness by the sharp built-in probe. Radius of Probe Pin. Material of Probe Pin. Probe Angle. Cutoff length(l). Highly sophisticated inductance sensor. Be compatible with four standards of ISO, DIN, ANSI and JIS.
Related Items
1A1R Segmented Diamond Cut Off Wheel 10″ x .065″ x 5/8″ 60/80 Grit High Con USA

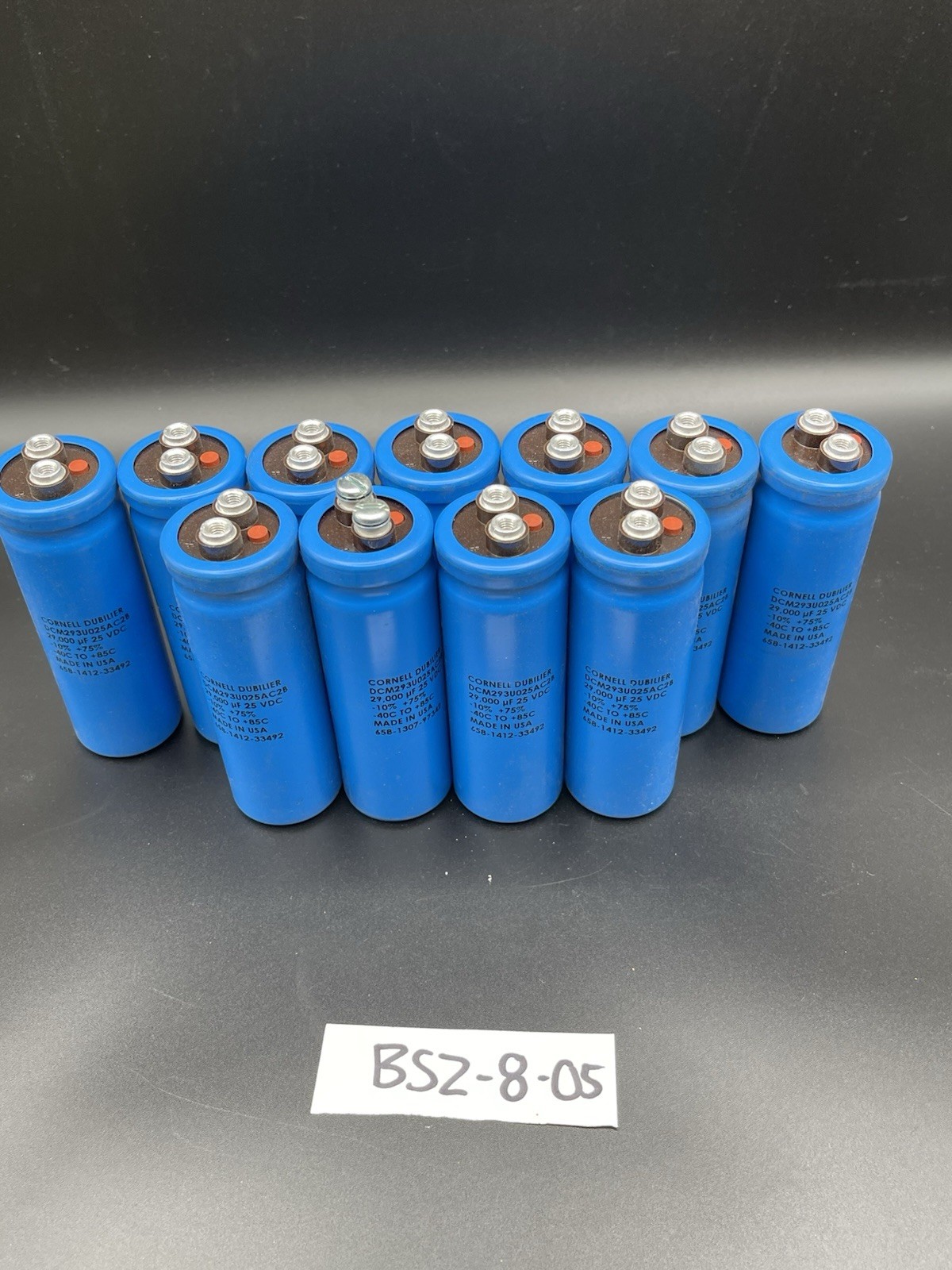

Cornell Dubilier CDE Capacitors DCM293U025AC2B 29,000 µF 25VDC -10% +75% Qty 11
