Super Bright White LED 3mm 3V Water Clear Transparent – 10x 25x 50x 100x Pc Pkgs
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Forward Voltage | 3 V |
| Country/Region Of Manufacture | China |
| Brightness | 12000 mcd |
| Mounting Style | Through-Hole |
| Nominal Voltage | 3 V |
| Lens Shape | Dome |
| Forward Current | 20 mA |
| Light Intensity | 12000 mcd |
| Type | LED |
| LED Color | White |
| Viewing Angle | 30° |
| Configuration | Single |
| Wavelength | 8000K - 10000K |
| Packaging | Bag |
| Nominal Current Rating | 20 mA |
| Brand | Envistia |
| Lens Surface | Clear |
| Size | 3mm |
| LED Size | 3 mm |

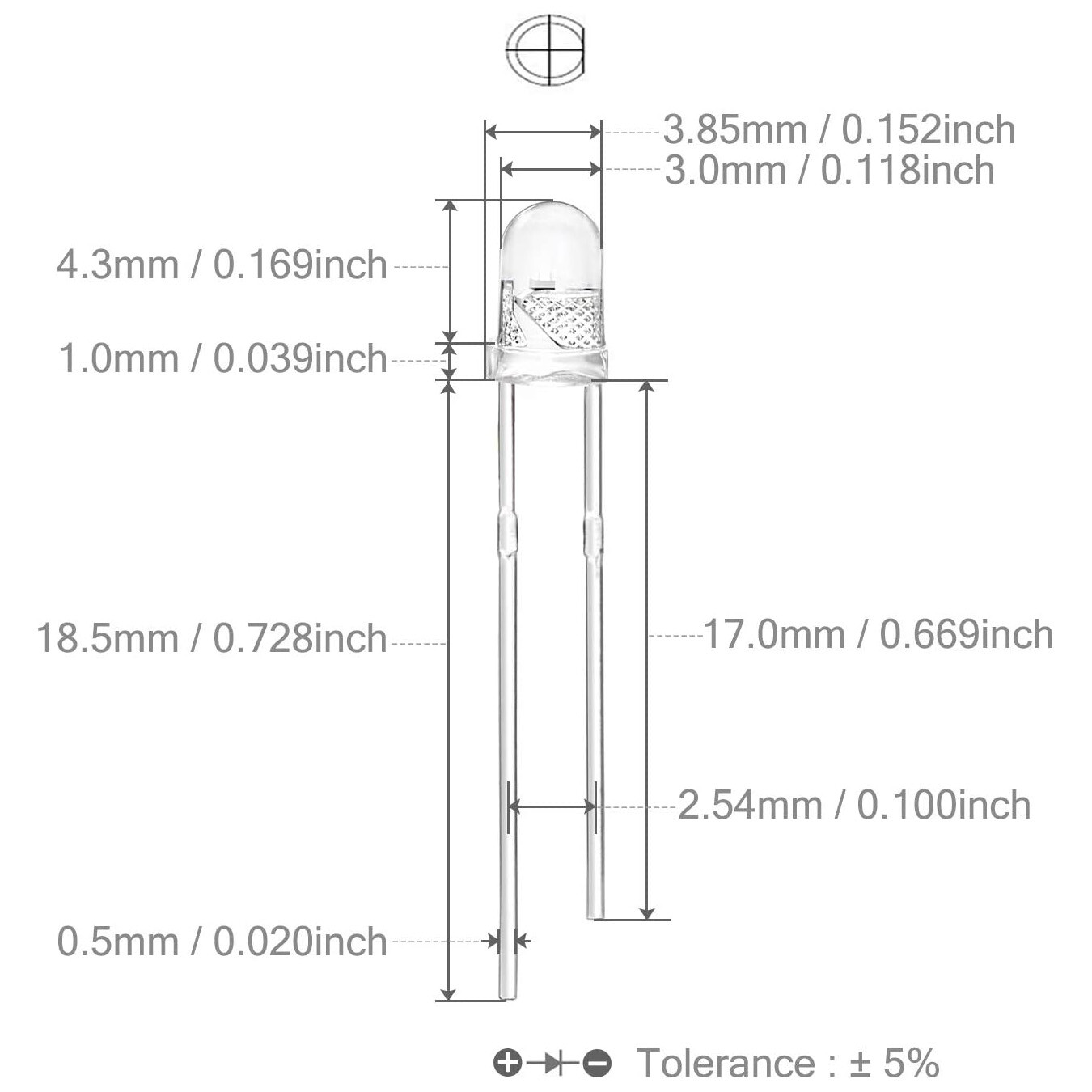

3mm Bright White Super Bright 12000mcd Water Clear Package LEDs Packages of 10, 25, 50 or 100 LEDs These bright white 3mm through-hole LEDs are very bright at 12000 mcd, typical forward voltage is 3.0-3.2Vdc and drive current is 20mA. The lens is clear (transparent), 3mm in diameter with a 30° viewing angle. The two-pin legs are the positive and negative leads of the LED; the longer of the two leads is the positive side (Anode). Features & Specifications:Dimensions: 3mmEmitting Color: White (8000k - 10000k)Package: Clear (Transparent)Pin spacing: 2.54mmForward Voltage: 3.0-3.2VForward Current: 20mAViewing Angle: 30 Degrees (50% power angle)Luminous Intensity: 12000 mcdLead Length: ~26mm (~1 inch)Polarity: Anode (+): Long Lead | Cathode (-): Short Lead Get it faster! Stocks and ships from our US Colorado office for quick delivery. Please contact us for quantity/OEM pricing. We provide FREE USPS First Class Shipping with Tracking - Not Economy Shipping
